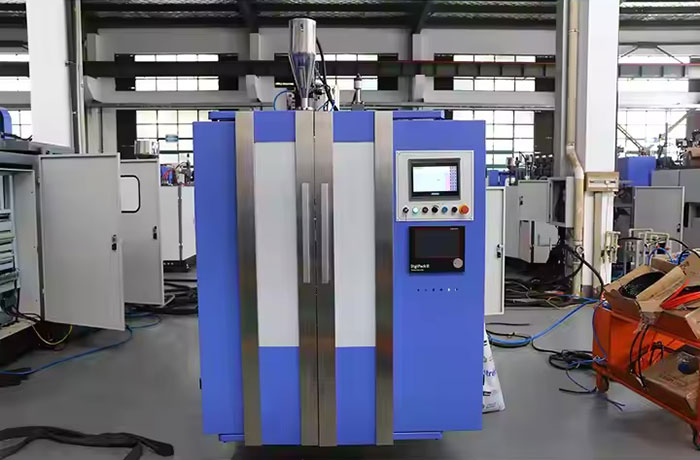

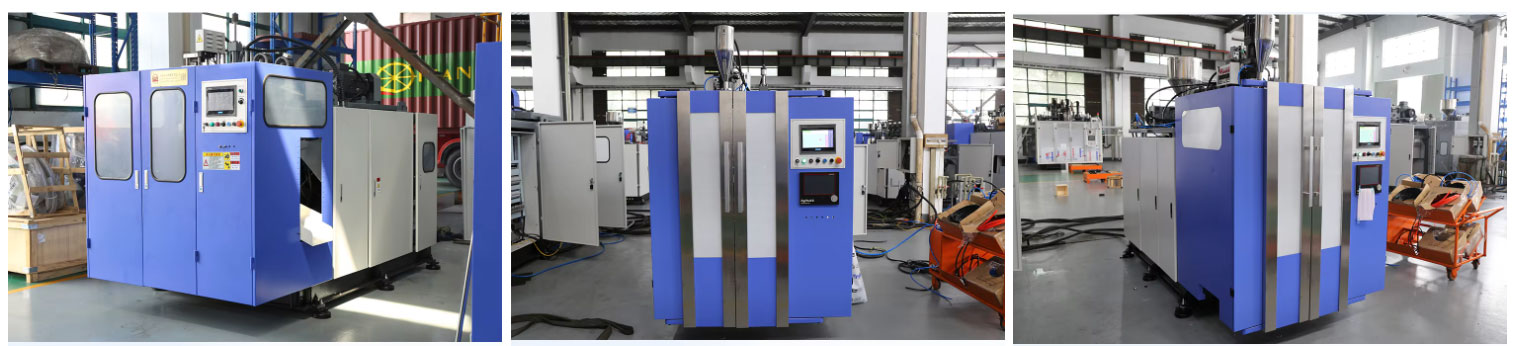

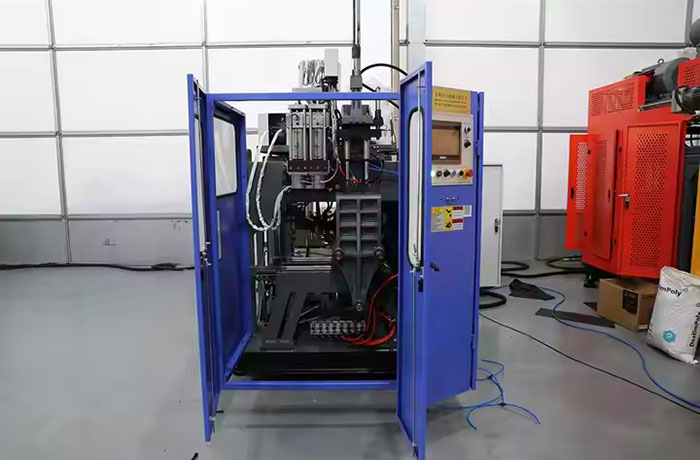

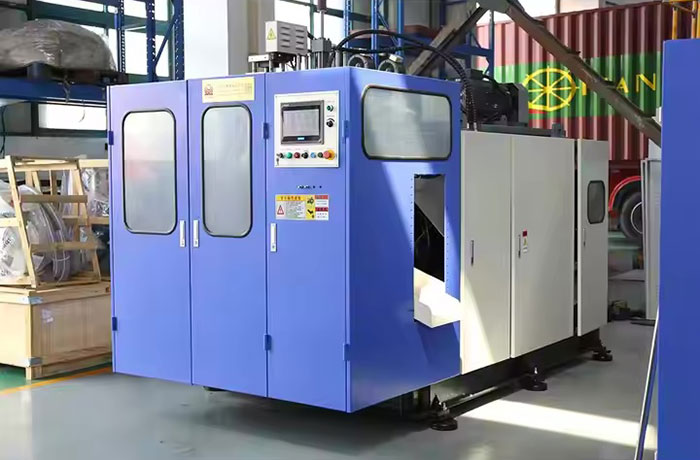

Daily Chemical Bottle Machine
. Suitable for the production of 0-2L plastic hollow products.
. Continuous extrusion die head with high output extrusion system , mold moving proportional servo control system.
. Standard Hydraulic servo control system.
. Liquid Level Line extrusion system option.
product description
This is our basic series machine.It is single station.This machine is suitable for the small bottles.The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements, we can provide customized services for you.
| Station | Single | |
| Max.product volume | L | 2 |
| Dry cycle | pc/h | 900 |
| Central distance of double head | mm | 130 |
| Output of HDPE | kg/h | 50 |
| Weight of machine | kg | 3300 |
| Size of machine(L*W*H) | m | 3*1.55*2.35 |
| Die head | ||
| Max.die diameter | mm | 108 |
| Die head heating zone | 3 | |
| Die head heating | kw | 5.2 |
| Clamping Unit | ||
| Platen distance | mm | 138~368 |
| Mold moving stroke | mm | 320 |
| Clamping force | kn | 44 |
| Extruder Unit | ||
| Screw diametre | mm | 50 |
| Screw length/diametre ratio | 25 | |
| Screw heating power | kw | 6.8 |
| No.of heating zone | 3 | |
| Power Unit | ||
| Oil pump motor power | kw | 7.5 |
| Screw motor power | kw | 11 |
| Total power | kw | 30.5 |
| Remarks | ||
| Air consumption | m³/min | 0.4 |
| Blow pressure | Mpa | 0.6 |
| Cooling water pressure | Mpa | 0.3 |
| Water consumption | L/min | 35 |
| Max size of mold(W*H) | mm | 310*320 |
